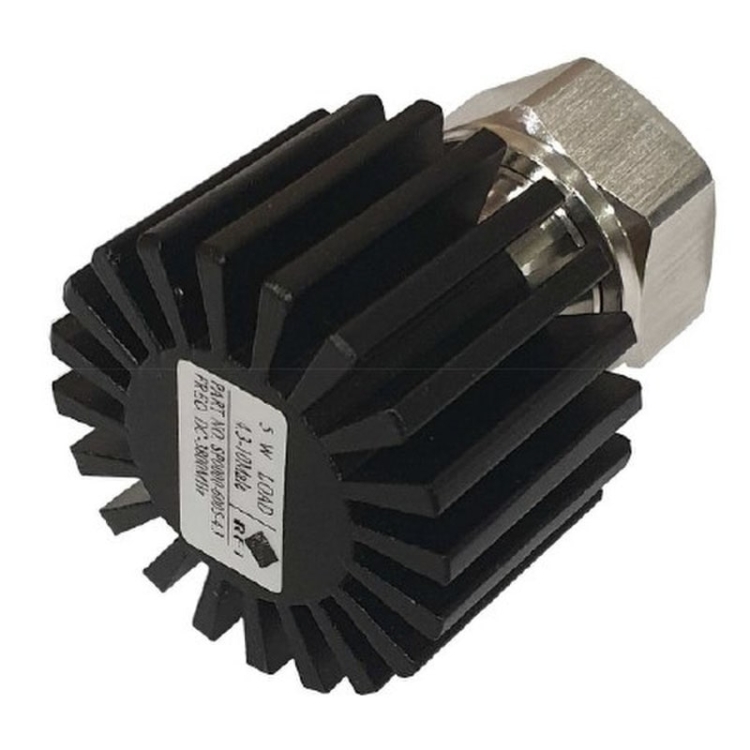

Termination Load 5W DC-3.8GHz 4.3-10 Male 50 Ohm
Overview:
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| Manufacturer | RF Industries |
|---|---|
| Colour | Black |
RFI has a wide range of coaxial 50 Ohm resistive termination loads in various connector types, power ratings and frequency range DC - 3800MHz, suitable for use in multi-coupling, distributed antenna, radiating cable systems and laboratory test environments.
range of 4.3-10 RF Loads Terminations are offer low pim performance, and are ideally suited for multicoupling, distributed antenna and radiating cable systems, testing and other laboratory purposes.
RFI's range of RF Loads are especially designed as heavy duty, precision 50ohm terminations for coaxial cables and multicoupling devices, with models available to suit requirements at various input power ratings and frequencies from DC - 3800MHz.
Many of the RFI 50 Ohm Termination Loads have power density factors (the ratio of rated power to heatsink surface area) in the range 0.54 to 0.28watts/in², in some cases three to six times lower than competitive loads of similar power ratings. They use microwave grade, thin film, pyrolytic carbon resistors that exhibit excellent power handling capability and temperature cycling characteristics, as well as low noise and low temperature coefficients.
RFI RF Loads and Attenuators have excellent return loss over their entire operating range. They are therefore ideal for use in laboratory and field-testing applications for connection to wattmeters and other test equipment.
Features include:
- Termination of unused ports on multicoupling devices
- 4.3-10 male low PIM termination
Termination Load 5W DC-3.8GHz 4.3-10 Male 50 Ohm
