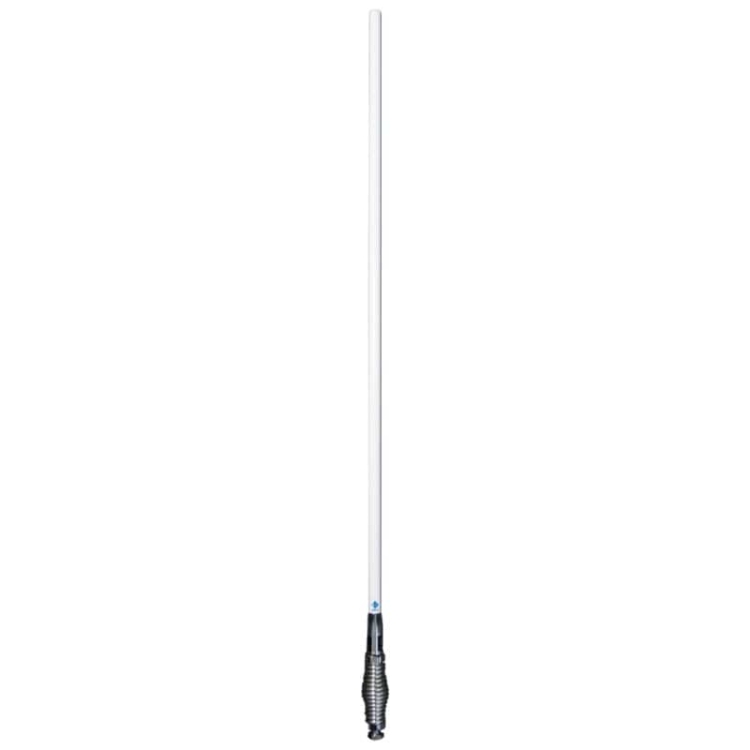

RFI CDR5000-W 5dBi White UHF CB Antenna 5m Cable FME Plug UHF Adaptor
Overview:
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| Manufacturer | RF Industries |
|---|---|
| Colour | Black |
| Antenna Frequency | 477 MHz |
| Antenna Gain | 5 dBi |
| Antenna Length | 920 |
| Removable Whip | Yes |
| Removable Whip Connection | RFI Q-Fit |
| Diameter | 22.5 to 15.6mm Tapered |
| Strength | Medium Duty |
| Mounting | Medium Duty Spring with 13mm Stud |
| Cable Length | 5m |
| Cable Type | RFI-9006 (RG58) |
| Connector | FME (Female) with UHF Adaptor |
| Antenna Material / Construction | PCB Radiating Element Housed in Tapered High Impact Fibreglass Whip |
| Antenna Power | 25W |
| VSWR | <1.5:1 |
The CDR5000W is a light weight version of the CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises the Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and (like the CDQ) features the Q-Fit® removable whip system.
The antenna is supplied with our medium duty spring assembly which includes 5m of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Features:
· PCB based Meander™ collinear design offering the ultimate performance & robustness.
· 5dBi gain across the full 477 MHz UHF CB band.
· Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
· Totally ground plane independent.
· Supplied pre-terminated with FME connector and UHF adaptor
