RFI 5G XPOL CRC9 Directional MIMO Antenna Kit

The RFI LTE-XPOL-002-5G is a directional antenna suitable for frequencies from 698MHz to 3800MHz which covers 5G, 4G and 3G in MIMO X Polarisation configuration for super fast internet and mobile connections. Use with your Nighthawk modem router for superior connectivity.

Want super fast internet?

This is the antenna to hook up to your Telstra WiFi Pro, Netgear Nighthawk or other LTE 4G 5G mobile router and will deliver you with speeds to pretty much do what you want on the internet. The antenna has a MIMO setup which is 2 antennas that are cross polarised at  45°, 90° from each other to match the cell towers polarisation and works by nearly doubling the throughput out of the one physical unit.

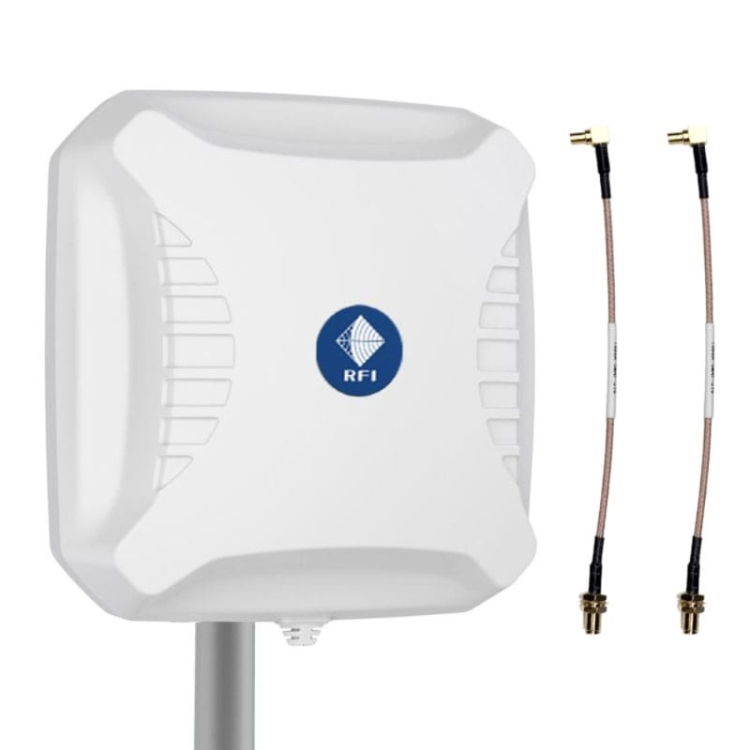

The RFI LTE-XPOL-002-5G comes with 2x 10m cables that have SMA Male plugs on the ends and this kit includes 2 15cm patch leads that connect onto the ends of the antenna cables with SMA Female connectors and plug straight into the antenna port on your modem router.

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by the RFI V2 model of this antenna and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.

Antenna Features:

• 2-3dB higher gain over all the bands compared to “V2” of this antenna
• New 3400MHz-3800MHz, 5G band with 11dBi gain
• Consistent broadband performance
• X-Polarised 2x2 MIMO antenna
• Wall or pole mountable
• Lightweight & rugged
• Weatherproof & waterproof (IP65)
• High pattern consistency across bands for 4G/5G carrier aggregation
